Introduction
In the era of management of large volumes of data, companies often find themselves having to choose storage solutions that balance capacity, reliability e Costs. The growing demand for storage, driven by increasingly complex applications data-intensive and from requirements of long-term preservation, imposes strategic choices in the infrastructure design phase. A common choice, especially in environments where thebudget optimization it's a priority, it's the use of High capacity SATA HDD disks, like those from 16TB, to create arrays RAID1 via utilities Linux MD. These discs represent a effective compromise between price per gigabyte and storage capacity, making them ideal for workloads which do not require high performance but need high volumes e durability over time.
This configuration, although simple to implement e Natively supported from most Linux distributions, but introduces a series of technical considerations related to long-term data management. In particular, it becomes essential to carefully evaluate the Operational implications connected to the Array maintenance, preventive diagnostics and the performance management in phase of periodic check. In fact, al grow the size of the units, even the normal ones administrative operations begin to take on a significant weight, potentially influencing theefficiency of the entire system. In this article, we will explore the issues associated with integrity control in RAID1 environments with large disks and as OpenZFS can offer a more efficient and reliable solution.
RAID1 with mdadm: An Overview
Il RAID1, Also known as mirroring, is a configuration where the data is duplicated on two or more discs. This architecture allows to ensure the business continuity even in the case of failure of one of the units, since each disk in the array contains a identical copy of the data. In environments where thereliability is a priority, as production server, database o critical storage systems, RAID1 represents one of the simpler and more effective solutions is preferably used for data protection.
In Linux, the utility Mdadm It is commonly used to manage software RAID arrays, offering a complete set of tools is preferably used for creation &, monitoring , Array maintenanceIts diffusion is due to the flexibility, All 'Linux kernel integration and the possibility of being used on existing systems without dedicated RAID hardwareThe software approach also allows for a more granular control over the array and simplify administrative interventions such as disc replacement or restore configurations. Despite his reliability e Wide adoption, RAID1 management via mdadm also presents some limitations which must be carefully evaluated in relation to the specific infrastructure needs.
The integrity control problem
To ensure thedata reliability, mdadm periodically performs a array integrity check. This process, known as “check array”, is scheduled to happen the first Sunday of every month on many Linux distributions, such as Debian. The purpose is to verify that the data on both mirror disks is still consistent and have not suffered silent alterations or damages. During this check, the entire contents of the array are read and compared to detect any discrepancies between the discs. In case of inconsistencies, mdadm can notify the administrator and, if possible, proceed to the correction using i copy data integrity.

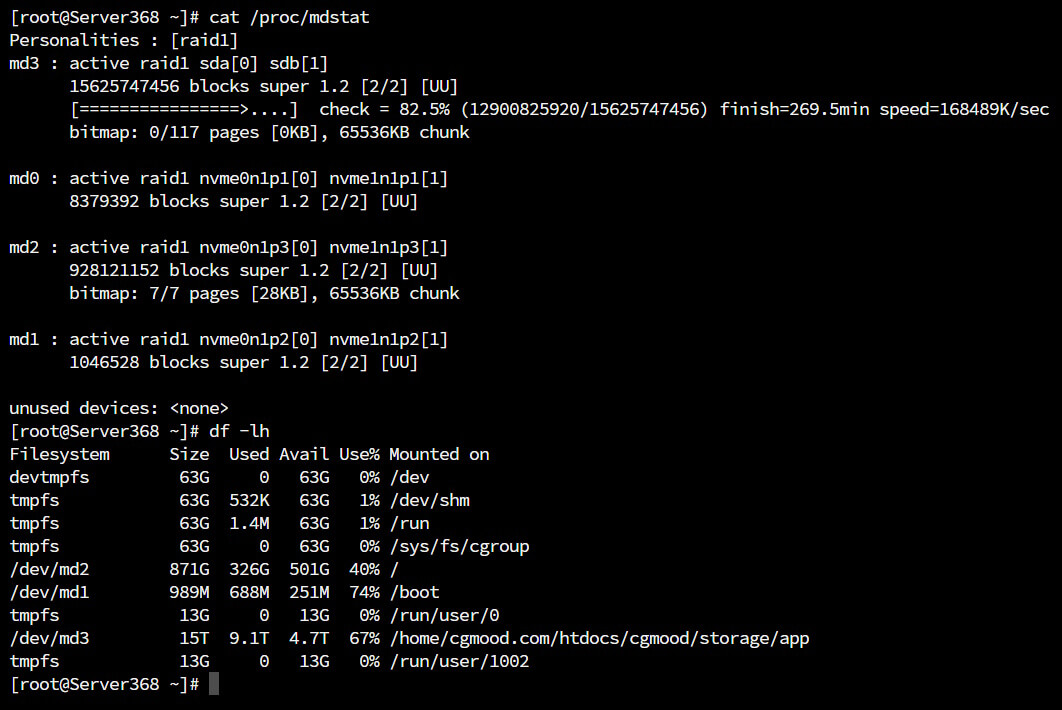

However, with large disks, like those from 16TB, this process may require a considerable time. For example, if to complete the 17% of the control are needed 269 minutes at a di speed 168 MB / s, we can estimate that the whole process would take about 1.582 minutes, or over 26 hours. This data highlights how the check time can grow in a way exponential as capacity increases of the discs. During this period, theDisk I/O is heavily engaged, reducing the overall system performance and potentially interfering with the daily operations. Furthermore, this prolonged load can have an impact on thewear of the discs themselves and onuser experience, especially in production environments where the Consistent throughput is essentialThe monthly interval of these checks, although useful as a preventative measure, therefore risks turning into a operational penalty, especially when it coincides with moments of heavy use of the system.
Impact on performance
Il RAID1 array integrity check with mdadm can have a significant impact on system performance, especially when using SATA HDD disks, which are already slower compared to the units SSD or NVMe. The mechanical nature of HDDs introduces intrinsic latencies due to seek time and the rotation speed, which are added to the additional load generated by the verification process. During the verification process, theDisk I/O is monopolized, leaving few resources available for other operations. The Concurrent read or write requests coming from applications or users may be subject to significant delays, creating bottlenecks evident in the system performance.
This can cause slowdowns in applications, longer response times has always been general decrease in system efficiency. In the worst cases, performance can to degrade to point from temporarily compromise the usability of the services provided, especially in environments where thedata access it has to happen in real time or with low latency. Furthermore, the I/O saturation can lead to a increased processing times with planned operations, as backup o bulk file transfers, sometimes forcing us to Plan maintenance windows carefully to avoid impacts on daily work activities.
OpenZFS: A More Efficient Solution
OpenZFS is a advanced file system that complements volume management features e data protection. This unified architecture allows a consistent and optimized view of storage, eliminating the separation between the level of file system and volume management, as happens instead in the more traditional solutions. One of his distinguishing features is the ability to perform the “self-healing”, Or the Automatic correction of data errors in real timeThis mechanism is based on the use of checksum for each block of data, who come continuously verified and, in case of discrepancies, automatically corrected thanks to the presence of redundant copies.
An important feature of OpenZFS is also its different nomenclature compared to traditional RAID tools such as mdadm. For example, what in mdadm It is defined as RAID1, in OpenZFS it is simply called mirroring. This reflects a design approach that is more oriented towards the functional description of pool behavior rather than conventional numeric RAID schemes.
Unlike mdadm, OpenZFS does not require periodic integrity checks, since Verifies and corrects data during each read and write operationThis approach allows for a immediate detection of problems, without the need for schedule full array checks, which may result invasive o impacting on system performance. Also, this one proactive and continuous verification It allows minimize the risk of silent data corruption, which in traditional systems could remain unnoticed up to next scheduled check. In this way, OpenZFS stands out for more intelligent and resilient storage management, suitable for scenarios where theintegrity , availability of information are top priorities.

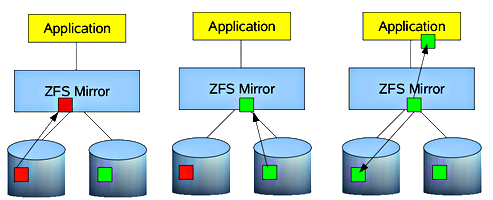

Self-healing in real time
OpenZFS calculate and memorize checksum for each block of data. Unlike many traditional file systems which are limited to guaranteeing the structural consistency of metadata, ZFS extends protection toentire content stored, treating each block as a single atomic unit whose integrity must be guaranteed end-to-endThe checksums used are robust cryptographic hash algorithms including SHA-256, which offer ahigh probability of detecting any type of accidental alteration o hardware malfunction, as bit rot o silent corruptions.
When the data is read, the checksum associated with the block è recalculated and compared with the one previously stored in the file system metadata, which are in turn protected by checksums at higher levels, in a tree structure (Merkle Tree). If a discrepancy is detected, OpenZFS interprets the data as corrupt and, if the volume is configured in redundant mode (for example with mirroring o RAID-Z), automatically proceeds to retrieve the correct data from one of the healthy copies available.
This verification and self-repair mechanism happens in real time, at the very moment the data is read, eliminating the need for separate or planned steps is preferably used for integrity check.algorithm is designed to scale efficiently even on large datasets thanks to Hierarchical structure of metadata and the possibility of segment operations across multiple threads, taking full advantage of the parallelization offered by modern multi-core systems.
This architecture makes OpenZFS particularly resistant to latent failures and disk drive malfunctions, guaranteeing a reliability level which goes far beyond the simple protections offered by traditional software RAID. Furthermore, thanks to the approach copy-on-write, Each data modification never directly overwrites the original block, drastically reducing the risk of corruption caused by crash or blackout while writing.
Scrub: A proactive control
Although OpenZFS does not require periodic integrity checks, offers the possibility of performing a “scrub”, a process that actively checks all data since storage pool. Unlike the Forced check of a software RAID array, scrub in OpenZFS It is not an emergency corrective operation, but rather one preventive measure and “good maintenance”. During the scrub, the system systematically reads each block of data and it Verify the checksum, exactly as it would do during a normal reading, but extending the operation to the entire dataset in a coordinated manner.
The scrub can be scheduled at a lower frequency compared to the controls of mdadm, for example monthly or also rarely, based on infrastructure needs. In many cases, the execution interval can also be half-yearly or yearly, thanks to constant verification and to the mechanism of self-healing performed in real time. Furthermore, OpenZFS handles scrubbing intelligently, by running it in the background and with mechanical low priority, In order to not significantly impact normal system operations. It is possible too suspend or slow down the scrub manually or automatically if a fault is detected high load on the system.
From a technical point of view, the scrub does not introduce changes to the data, but it is limited to the check and the correction only if a discrepancy is identified. If a is detected corrupted block, the system will search for a healthy copy among the available replicas (in redundant configurations) and will perform the rewrite, automatically updating the checksums involved. This process further strengthens the resilience of the architecture, offering a additional layer of security also for data that is not frequently read and which therefore could host silent errors not detected under normal conditions.
Advantages of OpenZFS over mdadm
-
Continuous data verification: OpenZFS checks data integrity during every I/O operation, reducing the need for periodic checks. Each block written to disk is accompanied by a checksum that is calculated and stored separately in the metadata. The next time the data is read, the system rechecks the checksum to ensure that the data is still intact. This proactive approach ensures that any corruption is detected and addressed immediately, without having to wait for a scheduled verification process. Verification is therefore distributed over time and integrated into normal system usage, making error detection part of the operational flow rather than an one-time operation.
-
Automatic error correction: If errors are detected, OpenZFS automatically attempts to correct them using redundant copies. If a block is corrupted, and the pool is configured with redundancy (such as mirroring or RAID-Z), ZFS reads from another replica of the data. After verifying that the alternate copy is correct, it automatically overwrites the corrupt block with the healthy one. This process, known as self healing, is completely transparent to the user and requires no manual intervention, minimizing the risk of data loss or exposure to corrupt data.
-
Minimal impact on performance: OpenZFS scrub is less invasive than integrity checking
mdadm, allowing the system to maintain high performance during the process. The operation runs in the background and can be dynamically managed based on system load. ZFS uses lower I/O priorities for scrub operations, allowing active processes to take precedence over resources. This approach ensures that integrity maintenance does not become a bottleneck, even in production environments or when accessed by multiple users at the same time. -
Integrated volume management: OpenZFS combines file system and volume management functionality, simplifying administration and improving efficiency. Unlike traditional solutions that require separate tools for volume management (such as LVM) and file system management (such as ext4, xfs), ZFS provides a single, consistent interface for pool creation, snapshots, quota management, compression, deduplication, and more. This integration reduces operational complexity, eliminates potential conflicts between different layers of the storage stack, and enables leaner, more scalable, and reliable management.
Final houghts
For companies that manage large volumes of data and use large disks, the Choosing the right storage system is crucial. The needs are no longer limited to just the mere storage capacity, but include increasingly stringent criteria of reliability, operational efficiency e proactive maintenance. While mdadm It offers a reliable for the configuration of RAID1 arrays, well supported and extensively tested in Linux environments, integrity control process can become a significant bottleneck, especially in contexts where the maintenance windows are narrow or l 'data access is continuous.
This overdrive it makes itself felt even more with theIncrease disk capacity: Check times exceeding 24 hours are not acceptable in many modern production realities. In these scenarios, OpenZFS, with its capabilities of self healing e continuous data verification, represents a more efficient and scalable solution, able to guarantee thedata integrity with a minimal impact on system performance. Her integrated architecture, the native resilience to failures andautomation in correction operations make it particularly suitable for enterprise environments, private clouds e Highly available infrastructure.
Furthermore, the possibility of to monitor, handle e intervene on storage pools so centralized and transparent allows you to reduce operating costs and workload on systems teams. For those looking for a solid platform, Modern and oriented towards of your digital ecosystem. and the data longevity, OpenZFS represents a valuable technology choice, capable of responding effectively to challenges of modern data management.
Conclusion
La effective storage management It is essential to ensure the and security anddata integrity in corporate environments. In a context in which the IT infrastructure must support critical workloads, guarantee business continuity and protect the corporate information assets, it is essential to adopt solutions designed with logics of strength, scalability e automation. OpenZFS meets these requirements with a series of advanced features that exceed limitations of traditional solutions including mdadm, making it a ideal choice for organizations looking to optimize performance andreliability Of their storage system.
Let's talk about a enterprise-grade file system in all its components: from Native support for data compression and deduplication, up to creating instant snapshots e efficient clones, passing through a sophisticated management of quotas and resource pools. OpenZFS is built for environments that cannot afford interruptions o compromises in data consistency. Her copy-on-write architecture guarantees that no operation can corrupt the current state of the file system, even in the case of sudden crash or loss of power.
La project maturity, the constant evolution thanks to open source community and Support from multiple vendors and enterprise solutions testify to the robustness of technology. OpenZFS is not just a technical choiceIt is a guarantee of resilience, performance and control for those who manage mission critical storage. For this reason, it is increasingly being adopted even in areas where once only high cost commercial solutions, demonstrating that thereliability is not necessarily tied to price, but to quality of implementation and the design vision that supports it.
