December 20 2023

Load Balancing and algorithms you should know.

What is Load Balancing? Advanced load balancing strategies: optimizing performance and reliability in complex and dynamic IT environments.

In the IT field, load balancing, or "load balancing" in English, represents a critical methodology for the management and optimization of IT systems. This technique focuses on balancing the processing load of a given service, such as managing a website, across different servers. In more specific terms, when applied to network traffic management, this practice is known as “network load balancing.” The main objective is to increase the scalability and reliability of the overall IT architecture, distributing the workload evenly.

Load balancing not only focuses on distributing service requests among multiple servers, but also ensures a uniform and optimal user experience by balancing traffic between various clients. This approach allows you to effectively manage both the demand and supply of services, ensuring consistent performance for all users.

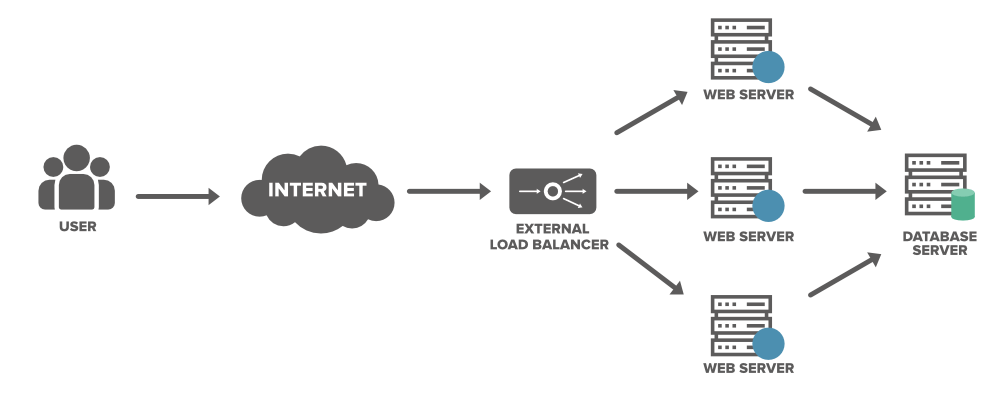

To illustrate the concept of load balancing, we can consider a practical example: in a cluster of three servers, if ten requests for a web page arrive, the first server will handle the first three requests, the second the next three, and the third server the last four. This system ensures equal distribution of work and improves overall efficiency.

The scalability of the load balancer comes from the ability to add new servers to the cluster as needed, while the increase in reliability is guaranteed by fault tolerance. In fact, in the event of a failure of one of the servers, the service continues to be provided without interruptions. Load balancers typically include monitoring capabilities that automatically detect and exclude failed servers from the cluster, thus preventing service requests from failing.

The architecture of a "high availability" (HA) system requires that the load balancer also be configured in a high availability cluster. To implement load balancing, interventions can occur at the application level or at the network level in the ISO/OSI stack. While application-level balancing offers greater flexibility, network-level balancing can handle significantly larger volumes of traffic.

The concept of load balancing has its origins in the electrotechnical sector, in particular in networks powered by multiple generators in parallel. An emblematic example is the national electricity grid, where it is necessary to equally distribute the power requested by users between the various power plants that feed the network. In this context, the network manager is responsible for balancing the load between the different power plants to ensure a constant and efficient supply.

Advantages of Load Balancing

1. Improved Performance and Reliability

  • Resource Optimization: Load balancing allows a balanced distribution of the workload between various servers. This not only reduces the risk of overload on a single node, but also maximizes the efficiency of using system resources. Servers are never idle or overloaded, but operate at an optimal load level, ensuring efficient use of energy and computing capacity.
  • Reduction of Response Times: A well-designed and configured load balancing system responds more quickly and efficiently to user requests. Since the work is equally distributed, each server has the ability to process requests quickly, thus improving the overall response speed of the system.
  • Increased Reliability: By evenly distributing the load, each server operates within its optimal limits, greatly reducing the risk of hardware failure caused by overload or overheating. Additionally, reducing stress on individual servers extends their operational life, decreasing the frequency of maintenance and replacement.

2. Scalability

  • Adaptability to Traffic Fluctuations: Load balancing is essential to handle traffic spikes. When there is a sudden increase in demands, the system can distribute the load more widely across existing servers or quickly integrate new servers into the cluster, ensuring service remains smooth and uninterrupted.
  • Manageable Growth: For growing businesses, the ability to easily add new resources without disrupting existing services is critical. Load balancing facilitates this expansion, allowing you to scale your IT infrastructure based on business needs without compromising performance or quality of service.

3. Continuous Availability

  • Failover and Redundancy: In the event of a server failure or malfunction, the load balancing system can immediately redirect traffic to other operational servers. This failover capability ensures that the service remains active, even in the face of hardware or software failures.
  • Interruption Prevention: Having a cluster of servers rather than a single point of failure dramatically reduces the likelihood of total outages. In the event of a server malfunction or maintenance, the load is automatically transferred to other nodes, thus ensuring operational continuity and reduced downtime.

Open Source Load Balancing Software

In the load balancing landscape, there are various software distinguished by their characteristics and traffic management capabilities, each with peculiarities that make it suitable for specific needs. Among these, two particularly effective and appreciated software solutions stand out:

HAProxy: Efficiency and Configurability

Haproxy-logo

HAProxy stands out as one of the most popular and reliable load balancers in the IT field. This open-source software is renowned for its exceptional efficiency in handling high volumes of web traffic. Its architecture is optimized to ensure fast response times and high availability, crucial elements in high-traffic production environments.

HAProxy's configurability is another of its strong points. It offers high flexibility that allows system administrators to precisely refine load balancing behavior, adapting it to specific infrastructure needs. This includes the ability to define detailed rules for traffic routing and session management, making it an ideal tool for complex and dynamic environments.

Features of HAProxy

  • HTTP/HTTPS Load Balancing: HAProxy supports load balancing for both HTTP and HTTPS traffic, effectively distributing incoming requests across multiple backend servers to optimize response speed and service availability.
  • TCP and UDP support: In addition to standard web traffic, HAProxy can handle load balancing for TCP- and UDP-based applications, making it versatile for a variety of network scenarios.
  • SSL Termination: Ability to terminate SSL/TLS connections directly to the HAProxy, allowing encrypted traffic to be decrypted for inspection or modification before forwarding to backend servers.
  • Data Compression: HAProxy can compress outgoing data to reduce the bandwidth used, thus speeding up data transfer and improving the end user experience.
  • Session Persistence (Sticky Sessions): Supports persistent session management, allowing users to maintain continuity of their session when they are redirected to a specific server.
  • Health checks: Performs regular health checks on backend servers to ensure only functioning nodes receive traffic, improving service reliability and availability.
  • Load Balancing Based on Advanced Algorithms: Provides various load balancing algorithms, such as round robin, least connections and source hashing, allowing for customizable load distribution based on specific needs.
  • High Availability and Failover: Supports high availability configurations with automatic failover, ensuring service continuity even in the event of node failure.
  • Access Control and Security: Includes access control and security features, such as request rate limiting and DDoS attack protection.
  • Detailed Logging and Real-Time Statistics: Offers advanced logging and statistics features, which enable detailed traffic and performance analysis, essential for infrastructure monitoring and optimization.
  • Flexible Configuration and Scripting: HAProxy stands out for its extremely flexible configurability and scripting capability, allowing detailed customization of the load balancer behavior.
  • Web Interface for Management: Some versions of HAProxy include a web interface for simplified management and visual monitoring of server health and network traffic.

Apache Traffic Server: Caching and Load Balancing for High Traffic

Apache TrafficServer

Apache Traffic Server presents itself as another important software solution in the context of load balancing. This proxy/cache server, developed within the Apache Software Foundation, is known for its robust capabilities in both caching and load balancing.

One of the main features of Apache Traffic Server is its effectiveness in handling websites with heavy web traffic. Thanks to its advanced caching features, it can significantly reduce the load on backend servers, while simultaneously improving the speed and responsiveness of websites. This is particularly advantageous for high-demand e-commerce platforms and CMS, where speed of response and reliability are key.

Additionally, Apache Traffic Server offers a wide range of configuration options that allow detailed traffic control and customization of caching behavior. This flexibility makes it an ideal choice for environments that require sophisticated traffic and resource management.

Features of Apache Traffic Server

  • Reverso Proxy Caching: Apache Traffic Server works as a reverse proxy, caching content from web servers to reduce response time and load on originating servers.
  • Load Balancing: Implements load balancing capabilities, distributing network requests across multiple backend servers to optimize service availability and performance.
  • Support for HTTP/1.x, HTTP/2 and WebSocket protocols: It is compatible with a variety of network protocols, including HTTP/1.x, HTTP/2, and WebSocket, providing versatility in managing web traffic.
  • SSL/TLS Offloading: Supports SSL/TLS offloading, allowing the server to handle encryption and decryption of traffic, thus alleviating the load on backend servers.
  • Flexible Configuration: Offers a wide range of configuration options that allow you to fine-tune proxy and load balancer behavior.
  • Advanced Traffic Management and Routing: Includes advanced features for traffic control and routing, allowing you to define specific rules for managing requests.
  • Remap and Redirect URLs: Allows you to rewrite, map or redirect URLs, making it easier to manage large and complex websites.
  • Access Control and Security: Provides access control tools and security features, such as DDoS attack protection and request throttling.
  • Statistics and Monitoring: Includes real-time monitoring and statistics tools, allowing you to analyze performance and optimize your configuration as needed.
  • Support for RESTful API: Apache Traffic Server can be managed and monitored through RESTful APIs, allowing for simple integration with other management systems and tools.
  • Extensibility via Plugins: Supports a wide range of plugins, allowing you to extend the server's functionality based on specific needs.
  • Hybrid Cache (RAM and Disk): Uses a hybrid cache that combines the speed of RAM with disk storage capacity, providing optimized performance and efficient cache management.

Load Balancing algorithms

Load balancing algorithms are essential for optimizing the distribution of requests in a network environment. Each algorithm has unique characteristics and is chosen based on the specific needs of an application or hosting environment. Below is a detailed analysis of the most commonly used algorithms:

Load Balancing Algorithms

1. Round Robin

Round Robin is one of the most basic and widely used load balancing algorithms. Characterized by its simplicity, this algorithm distributes requests uniformly and sequentially among all available servers in a group. Each server receives one request at a time, following a circular order. This ensures equal load distribution, which is particularly effective in environments where servers have similar capacity and performance. However, it does not take into account the actual load capacity or number of active connections of each server.

2. Sticky Round Robin

Sticky Round Robin is a variation of the traditional Round Robin that adds an element of “persistence” to user sessions. In this scheme, requests from a specific user are directed to the same server for a defined period or until the end of the session. This approach is particularly useful in scenarios where session consistency is necessary, such as in web applications that require the user to maintain a continuous connection with the same server. It is important to note that this can lead to unequally distributed load if a large number of persistent requests are directed to a single server.

3. Least Time

The Least Time algorithm chooses the server that has the shortest estimated response time to process a request. This algorithm is particularly effective in environments with servers of different capacities, as it directs requests to servers that are currently less busy or faster, thus reducing the overall response time. It is ideal for applications that require high responsiveness and minimal response times.

4. Least Connections

The Least Connections algorithm is designed to send new requests to the server with the fewest active connections at the moment. This method is particularly effective in environments where requests vary greatly in terms of resource intensity and processing time. It ensures that less loaded servers are used more efficiently by dynamically balancing load based on current connections rather than simply the sequence of requests.

5. IP/URL Hash

This algorithm uses a hash function to determine the destination of a request based on the client's IP address or request URL. This approach ensures that requests from the same client or for the same URL are consistently routed to the same server. This is particularly advantageous for maintaining session consistency and optimizing cache efficiency, since the same client will see its requests handled by the same node.

6. Weighted Round Robin

The Weighted Round Robin is a more advanced version of the simple Round Robin. In this model, each server is assigned a “weight” based on its capacity or current load. The requests are then distributed among the servers proportionally to their weights. This allows for more refined and adaptive load distribution, taking into account capacity differences between various servers. It is ideal for environments with heterogeneous servers in terms of power and load.

Conclusion

In conclusion, the effectiveness of load balancing in the modern IT landscape cannot be underestimated. The careful choice and implementation of appropriate load balancing algorithms are crucial to maximizing the performance, reliability and scalability of any hosting or web application infrastructure. From balanced Round Robin to sophisticated Weighted Round Robin, each algorithm offers a unique solution to address specific network challenges and requirements. In environments where traffic needs and server performance vary greatly, algorithms such as Least Connections or Least Time can provide significant improvements in load management and operational efficiency. Furthermore, adapting to persistent session scenarios through Sticky Round Robin or the consistency offered by IP/URL Hash highlights the versatility and need to customize load balancing strategies based on specific needs. Ultimately, the goal of any load balancing strategy is to ensure a smooth and reliable user experience, while maintaining a robust and efficient network infrastructure, ready to scale and adapt to the changing needs of the digital world.
